NP
NP / NON-INDUCTIVE TYPE POLYPROPYLENE FILM CAPACITOR SERIES
This series are sutable for the application in very low loss at high frequency and high voltage in horizontal resonance circuit and general resonace circuit. Temperature coefficient is negative.
| ITEM | CHARACTERISTICS | |
|---|---|---|
| OPERATING TEMERATURE RANGE | －40℃~+85℃ | |
| CAPACITANCE RANGE | 0.001㎌ ~ 0.68㎌ | |
| CAPACITANCE TOLERANCE | ±2%(G), ±5%(J), ±10%(K) | |
| STANDARD WORKING VOLTAGE | DC800V(2K), 1250V(3B), 1600V(3G) | |
| DISSIPATION FACTOR | Max 0.1% at 1KHz, 20℃ | |
| INSULATION RESISTANCE | Min 30,000MΩ | |
| WITHSTANDING VOLTAGE | DC800V ~ DC1600V | RATED VOLTAGE ×2.5(5SEC) |

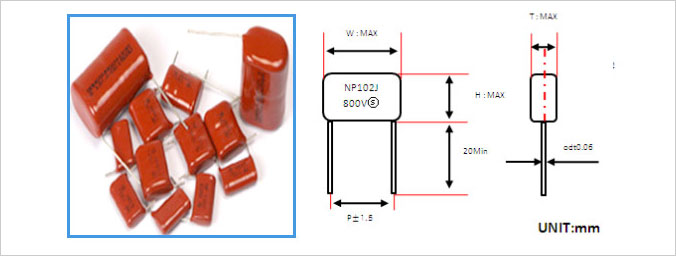

NP Type DRAWING
DIMENSIONS(mm)
| Capacitance <㎌> | DC800V | DC1250V | DC 1600V | |||||||||||||
| W | H | T | P | Dø | W | H | T | P | Dø | W | H | T | P | Dø | ||
| 102 | 0.001 | - | - | - | - | - | 20.5 | 10.5 | 6.0 | 16.5 | 0.8 | 20.5 | 12.5 | 6.5 | 16.5 | 0.8 |
| 122 | 0.0012 | - | - | - | - | - | 20.5 | 10.5 | 6.0 | 16.5 | 0.8 | 20.5 | 13.5 | 7.0 | 16.5 | 0.8 |
| 152 | 0.0015 | - | - | - | - | - | 20.5 | 11.0 | 6.5 | 16.5 | 0.8 | 20.5 | 14.5 | 7.5 | 16.5 | 0.8 |
| 182 | 0.0018 | - | - | - | - | - | 20.5 | 11.5 | 7.0 | 16.5 | 0.8 | 20.5 | 15.5 | 7.5 | 16.5 | 0.8 |
| 222 | 0.0022 | 20.5 | 10.5 | 6.0 | 16.5 | 0.7 | 20.5 | 12.0 | 7.5 | 16.5 | 0.8 | 26.5 | 13.0 | 7.0 | 22.5 | 0.8 |
| 272 | 0.0027 | 20.5 | 10.5 | 6.0 | 16.5 | 0.7 | 20.5 | 12.5 | 8.0 | 16.5 | 0.8 | 26.5 | 13.5 | 7.5 | 22.5 | 0.8 |
| 332 | 0.0033 | 20.5 | 10.5 | 6.0 | 16.5 | 0.7 | 26.5 | 13.0 | 8.0 | 16.5 | 0.8 | 26.5 | 13.5 | 7.5 | 22.5 | 0.8 |
| 392 | 0.0039 | 20.5 | 11.0 | 6.5 | 16.5 | 0.7 | 26.5 | 11.0 | 6.5 | 22.5 | 0.8 | 26.5 | 13.5 | 7.5 | 22.5 | 0.8 |
| 472 | 0.0047 | 20.5 | 11.5 | 7.0 | 16.5 | 0.7 | 26.5 | 12.0 | 7.0 | 22.5 | 0.8 | 26.5 | 14.0 | 8.0 | 22.5 | 0.8 |
| 562 | 0.0056 | 20.5 | 12.5 | 7.5 | 16.5 | 0.7 | 26.5 | 12.5 | 7.0 | 22.5 | 0.8 | 26.5 | 15.5 | 8.5 | 22.5 | 0.8 |
| 682 | 0.0068 | 20.5 | 13.0 | 8.0 | 16.5 | 0.7 | 26.5 | 13.0 | 8.0 | 22.5 | 0.8 | 26.5 | 16.0 | 9.0 | 22.5 | 0.8 |
| 822 | 0.0082 | 20.5 | 13.5 | 8.0 | 16.5 | 0.7 | 26.5 | 13.5 | 8.5 | 22.5 | 0.8 | 26.5 | 17.0 | 9.0 | 22.5 | 0.8 |
| 103 | 0.01 | 20.5 | 13.5 | 8.0 | 16.5 | 0.7 | 26.5 | 14.5 | 9.0 | 22.5 | 0.8 | 26.5 | 17.5 | 9.5 | 22.5 | 0.8 |
| 123 | 0.012 | 20.5 | 13.5 | 8.5 | 16.5 | 0.7 | 26.5 | 16.0 | 9.5 | 22.5 | 0.8 | 26.5 | 18.5 | 10.5 | 22.5 | 0.8 |
| 153 | 0.015 | 20.5 | 12.5 | 7.5 | 22.5 | 0.8 | 26.5 | 17.0 | 9.5 | 22.5 | 0.8 | 26.5 | 19.0 | 10.5 | 22.5 | 0.8 |
| 183 | 0.018 | 26.5 | 13.5 | 8.0 | 22.5 | 0.8 | 26.5 | 18.0 | 10.5 | 22.8 | 0.8 | 26.5 | 20.0 | 11.0 | 22.5 | 0.8 |
| 223 | 0.022 | 26.5 | 14.0 | 9.0 | 22.5 | 0.8 | 26.5 | 20.5 | 11.5 | 22.5 | 0.8 | 26.5 | 21.5 | 12.0 | 25.5 | 0.8 |
| 273 | 0.027 | 26.5 | 14.5 | 9.5 | 22.5 | 0.8 | 26.5 | 20.5 | 10.5 | 22.5 | 0.8 | 26.5 | - | - | - | - |
| 333 | 0.033 | 26.5 | 14.5 | 9.5 | 22.5 | 0.8 | 29.5 | 18.5 | 12.0 | 25.5 | 0.8 | 26.5 | - | - | - | - |
| 393 | 0.039 | 26.5 | 17.5 | 10.5 | 22.5 | 0.8 | 29.5 | 20.5 | 13.0 | 25.5 | 0.8 | - | - | - | - | - |
| 473 | 0.047 | 29.5 | 16.5 | 10.0 | 22.5 | 0.8 | - | - | - | - | - | - | - | - | - | - |
| 563 | 0.056 | 29.5 | 17.5 | 10.5 | 22.5 | 0.8 | - | - | - | - | - | - | - | - | - | - |
| 683 | 0.068 | 29.5 | 18.5 | 12.0 | 25.5 | 0.8 | - | - | - | - | - | - | - | - | - | - |
※ SPECIAL DIMENSION BY CUSTOMER IS ALSO AVAILABLE
